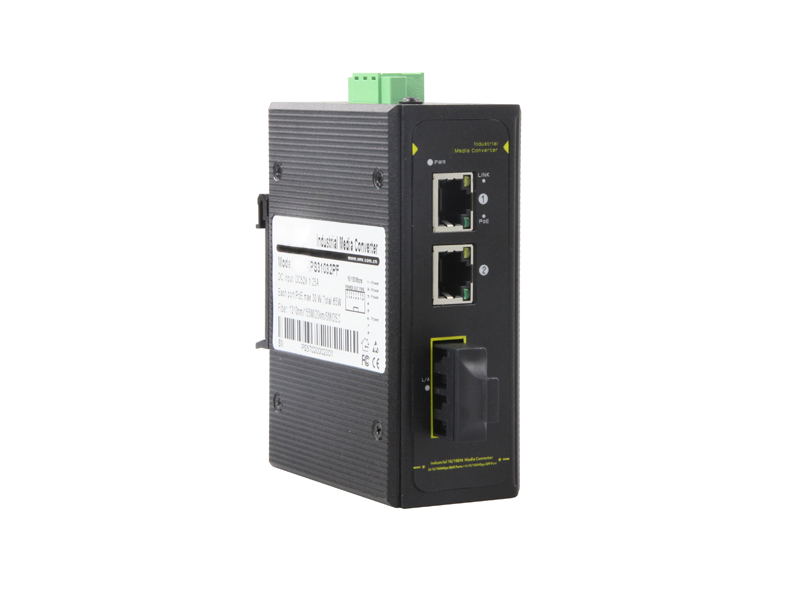

Industrial Switch 2x10/100 Mbps RJ45 + 1x100 Mbps SC port

14 July 2018

View 692 View

3-port industrial switch / media converter, with 2 10/100M Ethernet ports and 1 100M SC port, for connecting with devices like computer, switch, hub, server, etc. Optical fiber SC interface extends network transmission distance limit from 100m to above 30KM (single mode 2KM, single-mode 30KM), it simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals.
SG-31032 product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to  corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch,  plus standard DIN-35 rail type installation method.
Key Fetures

• Industrial design, 2x 10/100M Ethernet RJ45 ports with AutoUplink™ and 1x 100M single mode dual fiber SC optical port

• Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode

• RJ-45 port supports Auto MDI/MDI-X

•  Automatic MAC address learning and aging

• Plug and play, with LED indicators for monitoring power/link/activity, easy to use.

• Provides DIN35 rail-type installation method

• Electromagnetic compatibility of up to 4 grade standard

• IP40 protection class

• Superior performance, successfully used in industrial field
