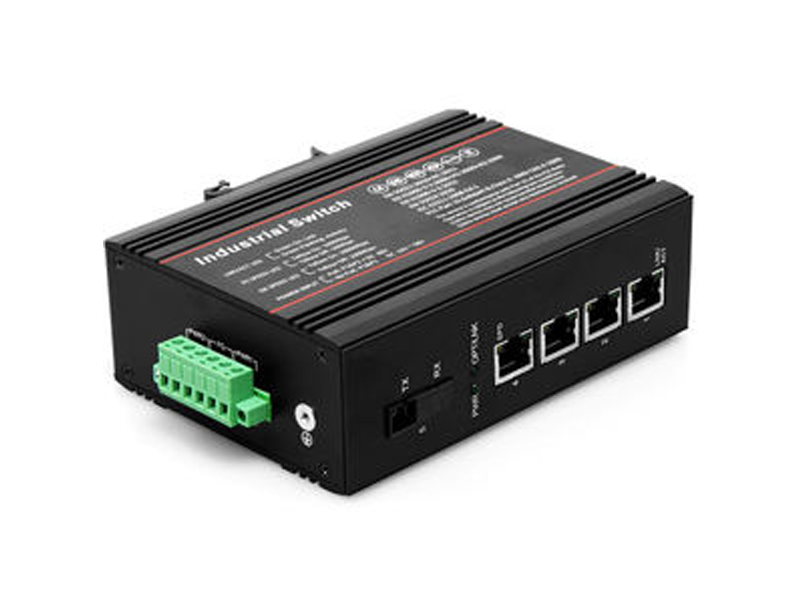

SG-2108
Category: Switch
Unmanaged Industrial Ethernet Switch

18 October 2018

View 71 View

Key features

• RJ45 : Four 10/100/1000BASE-T RJ45
• Fiber Ports : Two 1000BaseFX ports (SM/MM, SC/ST/FC/LC connector, optional)
• Standard : IEEE 802.3ab, IEEE 802.3u, IEEE 802.3I, IEEE 802.3z, IEEE 802.3at
• Backplane bandwidth : 12Gbps
• Packet forwarding rate : 8.928Mpps
• MAC address : 8K
• Buffer : 1M
• Housing: IP40 protection grade, DIN rail type, metal aluminum, no fan design
• Power output : 48 Vdc 120 Watt
• Installation mode : DIN card rail type
• Operating temperature : -40C ~ +85C
