Industrial 4-Port EPON ONU with PoE

11 July 2020

View 1302 View

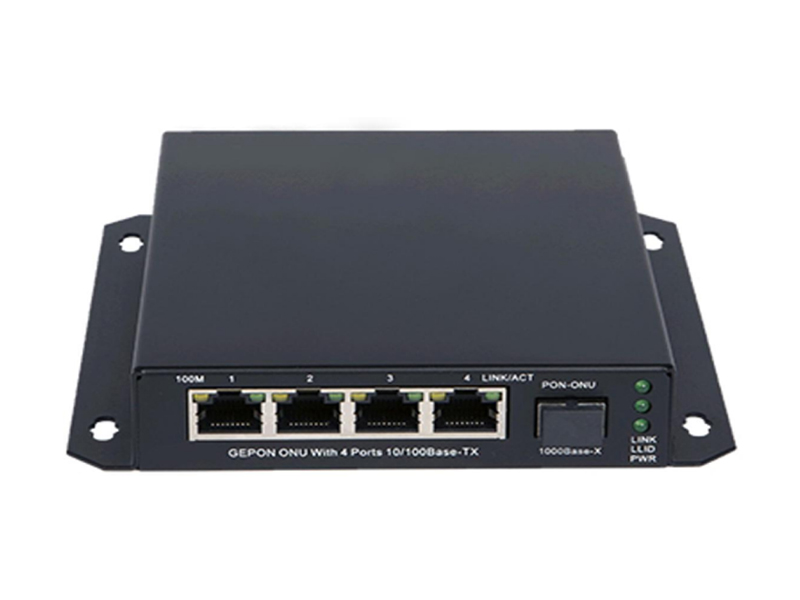

SG-ONU901-1G ONU is a device with 1 uplink GEPON port and 4 10/100M RJ45 ports. SG-ONU901-1G support POE (PSE) function, 4 FE ports Compatible with IEEE802.3af15.4W and IEEE802.3at 30W POE standards. SG-ONU901-1G ONU is Industrial type POE product, itcan auto discovery the power receiving devices which support IEEE802.3af/at standard andsupply power to it.To the connected devices which not support PoE, it will auto stop supplying power. SG-ONU901-1G supports to work with IP camera, IP phone, wireless AP and other net work devices, and supply power to these devices. It is mainly applied to security surveillance, smartcity,tunnel monitoring, coal mine network etc.

Key features

• Apply to IEEE802.3/802.3ah
• High-temperature resistance,anti-attack of thundering, anti-interference ability
• Under strong electromagnetic interference
• Support auto discovery and auto register (real-time operation)
• Support DBA and multi types SLA
• Support IEEE802.1D RSTP
• Support IGMP Snooping V2 multi-broadcast function
• Support EMI and ESD identification
• Support VLAN
• Support user end auto time synchronization based at SNTP
• Support powerful OAM and remote management
• Support port speed limit, loop detection and port VLAN
• Support state detection and fault location Support power failure alarm


Download : Datasheet
