ARSS (Anti-Rodent Self Support)
Category: Fiber Optic Cable
Multi-Tube, Armored, Single Jacket

30 March 2019

View 63 View

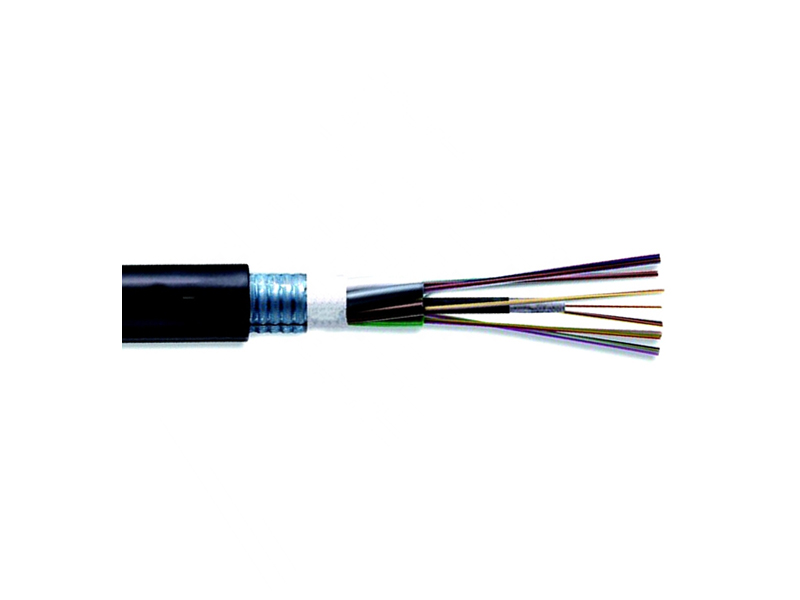

This fiber optic cable have color code for fiber and loose tube Identification, Single Jacket, fiber optic cable. Singlemode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a dielectric central strength member. Dry water blocking tapes or yarns, wrapped around the core, provide protection against water ingress. These user friendly elements replace the sticky cable filling gel used in traditional loose tube cable designs. Aramid yarns, which provide additional tensile strength, are applied over the cable core. Corrugated steel tape provide for anti-rodent. The cable sheath is high density polyethylene jacket. Contain 6 to 312 cores.

Standard

• ANSI/TIA-568-C.3
• ISO/IEC 11801:2011 (Ed.2.2)
• ANSI/TIA/EIA-568-B.3
• ISO/IEC 11801:2002
• ANSI/ICEA 640
• IEC 60793, IEC 60794-1-2
• Telcordia (Bellcore) GR-20-CORE
• EN 50173-1
• Telcordia (Bellcore) GR-20-CORE
• ITU-T G.652D (for single-mode), ITU-T G.651 (for multi-mode)
• EN 187000, TIS 2166-2548
• RoHS Compliant 2002/95/EC
