Dropwire Cable
Category: Fiber Optic Cable
Outdoor/indoor, Dropwire, FR-LSZH

30 March 2019

View 18 View

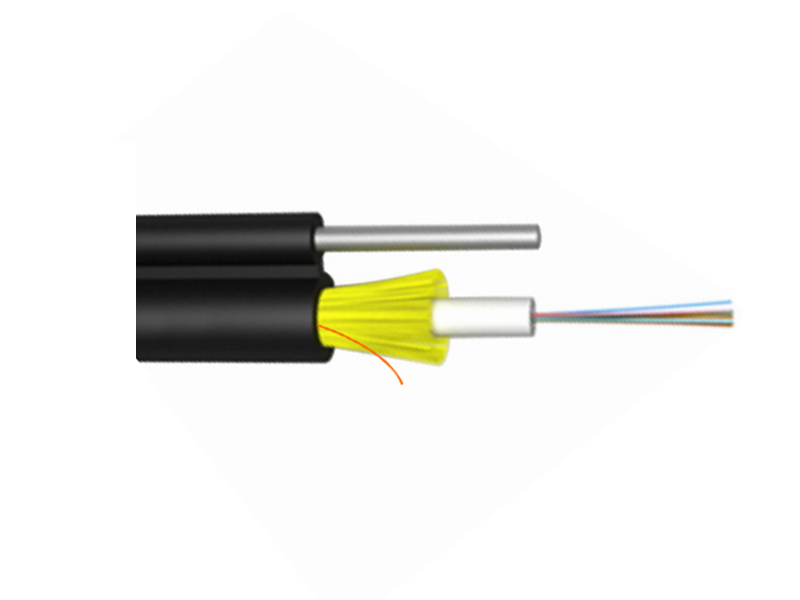

This fiber optic cable have color code for fiber and loose tube Identification, singlemode & multimode color coded fibers, single loose tube, the interstices between the optical fibers filled with a suitable waterproof compound. Filling compound is non-hygroscopic, electrically nonconductive, rip cord, water-blocking tape, E-glass yarns for additional strength member and rodent protection, self-supporting provided by extra high strength galvanized steel wire, black PE with LSZH jacket for UV-Resistant and flame retardant.

Standard

• ANSI/TIA-568-C.3
• ISO/IEC 11801:2011 (Ed.2.2)
• ANSI/TIA/EIA-568-B.3
• ISO/IEC 11801:2002
• ANSI/ICEA 696
• IEC 60332-1, IEC 60332-3
• Telcordia (Bellcore) GR-409-CORE
• IEC 61034-2, IEC 60754-2
• Telcordia (Bellcore) GR-20-CORE
• IEC 60793, IEC 60794-1-2
• ITU-T G.652D (for single-mode), ITU-T G.651 (for multi-mode)
• EN 50173-1, TIS 2166-2548
• RoHS Compliant 2002/95/EC
