Fig.8 Cable
Category: Fiber Optic Cable
Outdoor Fig 8, Single Jacket, LSZH

30 March 2019

View 58 View

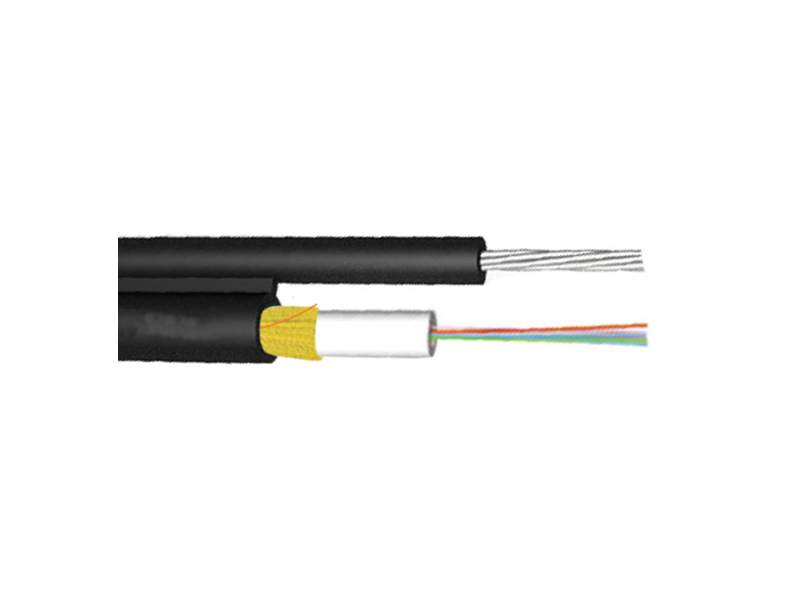

This fiber optic cable have color code for fiber and loose tube Identification, Single Jacket, fiber optic cable. Singlemode and 50 or 62.5 multimode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a steel wire central strength member. Dry water blocking tapes or yarns, wrapped around the core, provide protection against water ingress. These user friendly elements replace the sticky cable filling gel used in traditional loose tube cable designs. Corrugated steel tape for rodent protection, self-supporting provided by strand galvanize steel wire. The cable sheath is high density polyethylene jacket. Contain 6 to 144core.

• ANSI/TIA-568-C.3
• ISO/IEC 11801:2011 (Ed.2.2)
• ANSI/TIA/EIA-568-B.3
• ISO/IEC 11801:2002
• ANSI/ICEA 696
• IEC 60793, IEC 60794-1-2
• Telcordia (Bellcore) GR-20-CORE
• IEC 61034-2, IEC 60754-2, IEC 60332-3, IEC 60332-1
• EN 50173-1
• ITU-T G.652D (for single-mode), ITU-T G.651 (for multi-mode)
• TIS 2166-2548
• RoHS Compliant 2002/95/EC
