Multi-Tube Cable
Category: Fiber Optic Cable
Outdoor, Single Jacket, HDPE with rodent protection

30 March 2019

View 1179 View

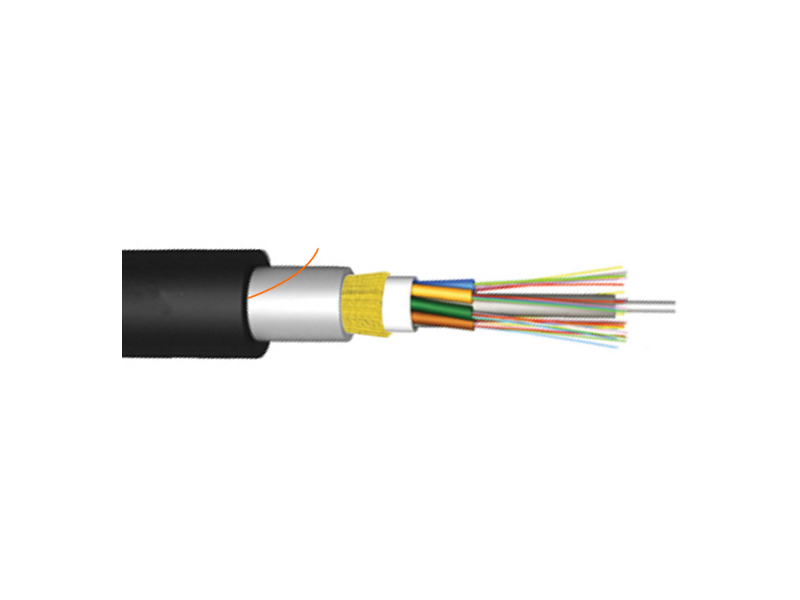

This fiber optic cable have color code for fiber and loose tube Identification, Single Jacket, fiber optic cable. Singlemode and 50 or 62.5 multimode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a dielectric central strength member. Dry water blocking tapes or yarns, wrapped around the core, provide protection against water ingress. These user friendly elements replace the sticky cable filling gel used in traditional loose tube cable designs. Aramid yarns, which provide additional tensile strength, are applied over the cable core. The cable sheath is high density polyethylene jacket.

Standard

• ANSI/TIA-568-C.3
• ISO/IEC 11801:2011
• ANSI/TIA/EIA-568-B.3
• ANSI/ICEA 640
• IEC 60793, IEC 60794-1-2
• Telcordia (Bellcore) GR-20-CORE
• IEC 60332-1, IEC 60332-2, IEC 60332-3
• IEC 60793/60794
• ITU-T G.652D (for single-mode), ITU-T G.651 (for multi-mode)
• ANSI/ICEA 596
• RoHS Compliant 2002/95/EC
