Pigtail
Category: Fiber Accessories
Duplex/Simplex, SM/MM

30 March 2019

View 1324 View

The Shogun offers a comprehensive line of fiber jumpers for connecting fiber links.The cables are high grade simplex cable available FR-LSZH. Choose from simplex or duplex, multimode (62.5/125 or 50/125) or single mode, SC or ST, jumpers, or pigtails. Assemblies are available in standard lengths of 1, 2, 3, and 5 meters, (custom lengths are also available).Each and every terminated connector is optically tested so that you can be assured that 100% of the Shogun-built cable assemblies meet the stringent performance limits as noted in the specifications chart. All jumpers are manufactured using the finest quality connectors and OFNR riser grade fiber

Features

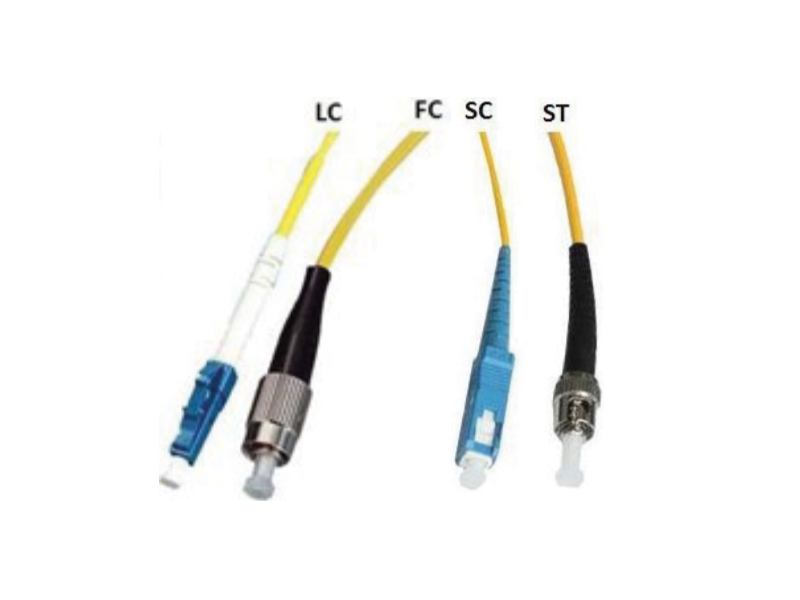

• Compatible with FC, SC standard & ST. connector
• PC ferrule with 20mm radius fast polishing
• Typical Insertion Loss Single-mode: 0.15dB, Multi-mode: 0.3dB
• Typical Return Loss (*), Single-mode: 50dB, Multi-mode: 20dB
• Low back reflection loss
• Operating Temperature : -40 ~ +75 C
• Storage Temperature : -55 ~ +85 C
