CAT6 UTP Dropwire
Category: UTP Cable

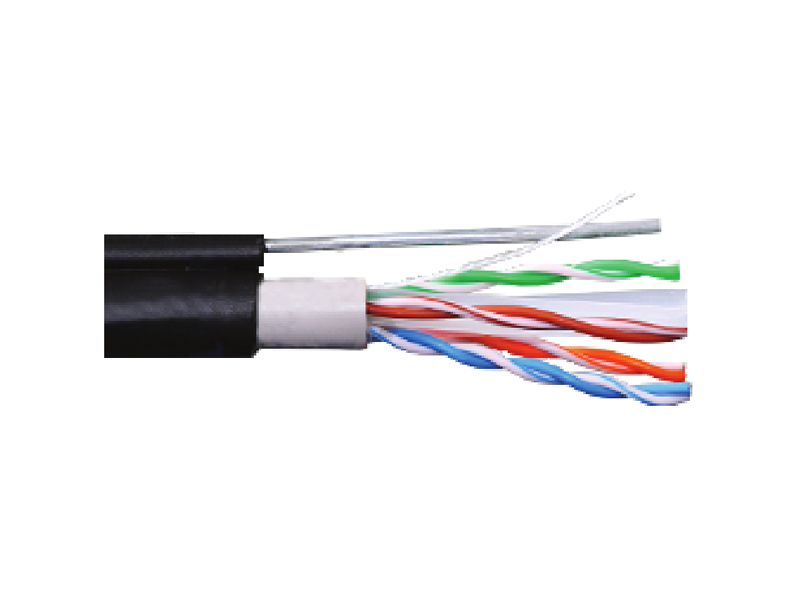

CAT6 UTP Cable, Outdoor Dropwire

26 January 2023

View 1331 View

High-Performance Data Cable. Outdoor UV Rated Jacket. Self-supporting. 4 twisted-Pair cable, Using solid bare copper conductor 23 AWG, insulated with HDPE Jacket

Standards

ANSI/TIA-568-C.2 Category 6, ISO/ICE 11801:2002 Class E, EN 50173-1 Category 6, ICEA S-102-700 Category 6, EN 50288-6-1, NEMA WC 66, ANSI/TIA-568.2-D, ISO/IEC11801:2017IEC61156-5, ASTM, D4566-98,ICE 60332-1, UL/CSA Listed CM,CMR,CMP and LSZH, ETL and 3P Verify to TIA-568-C.2 CAT6 , ISO/IEC 11801:2017RoHS Compliant

Functions

1000BASE-T (IEEE802.3ab Gigabit Ethernet) 100BASE-TX(IEEE802.3u Fast Ethernet) 10BASE-T(IEEE802.3 Ethernet) 52/155/622 Mbps and 1.2Gbps ATM, 10GBASE-T(55m), POE(IEEE802.3af, IEEE802.3at), IEEE802.5, Token Ring, TP-PMD, TPDDI, ISDN, VOIP, Analog & Digital Voice, Digital & Analog Video.



Download : Datasheet
