CAT6 Outdoor UTP
Category: UTP Cable

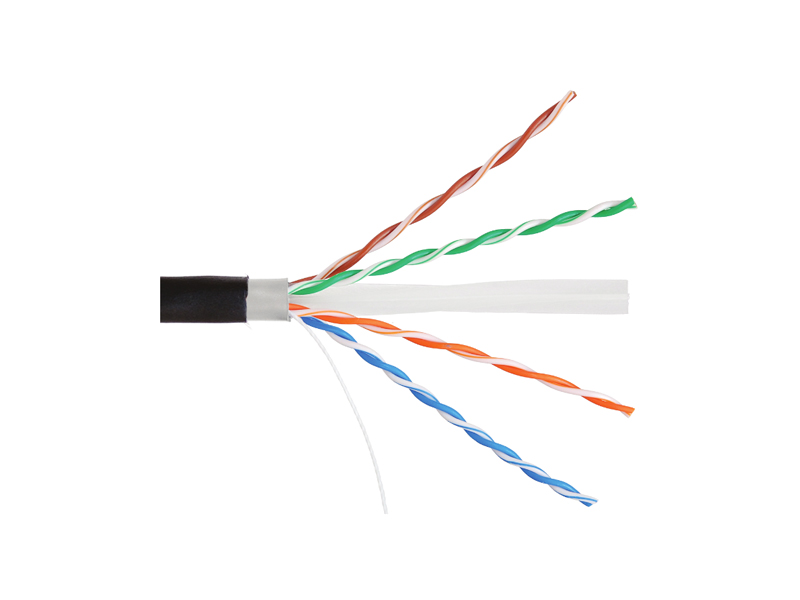

CAT6 UTP Cable, Outdoor Double Jacket

30 October 2023

View 1206 View

High-Performance Data Cable. Outdoor UV Rated Jacket. Self-supporting. 4 twisted-Pair cable, Using solid bare copper conductor 23 AWG, insulated with HDPE Jacket


1000BASE-T (IEEE802.3ab Gigabit Ethernet), 10/100/1000 Mbps Standard UTP 6, 100BASE-TX (IEEE802.3u Fast Ethernet), 10BASE-T (IEEE802.3 Ethernet) 52/155/622 Mbps and 1.2Gbps ATM, 10GBASE-T (IEEE802.3an 10Gigabit Ethernet, 55m), POE, POE+ (IEEE802.3af, IEEE802.3at) TP-PMD, 100 Mbps TPDDI, ISDN, VOIP, Analog & Digital Voice, Digital & Analog Video, 10 BASE-T, Broadband video,4/16 Mbps Token Ring.


ANSI/TIA-568-C.2 Category 6, ANSI-TIA/EIA-568-B.2 Category 6, TIA/EIA-568 A/B Category 6, TIA/EIA Category 6, CENELEC EN 50173, ANSI/TIA- 568.2-D, ISO/IEC11801:2017, ISO/IEC 11801:2002 Class E, EN50173-1 Category 6, EN50288-3-1, IEC61156-5, NEC800, UL444, UL E197771, NEMA  MC63.1 , EN 50288-6-1, ICEA S-102-700 Cateory 6, NEMAWC66.1 ICEAS-90-661 Category 6,RoHS Compliant


Download : Datasheet
