SG-0110S-SC
Category: Media Converter

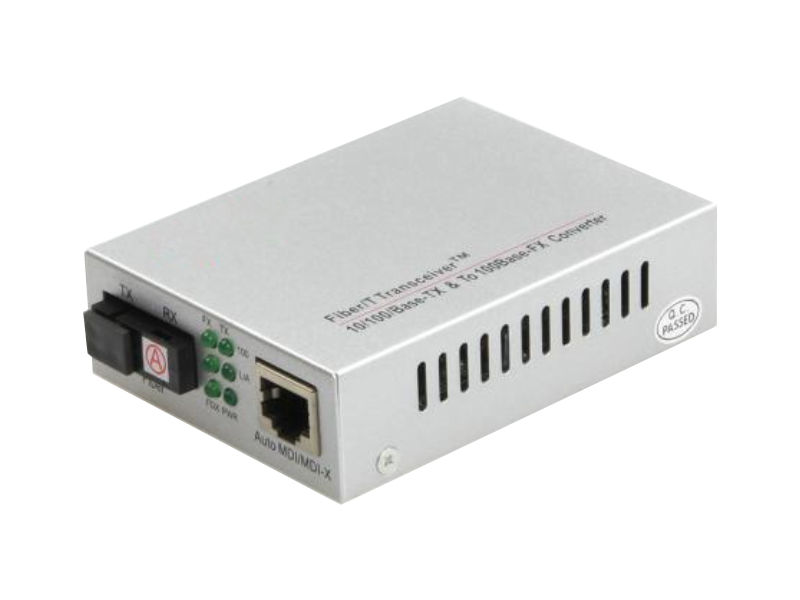

10/100M Single Port single fiber Media Converter

02 December 2022

View 1774 View

This 10/100M media converter can be use between 10Base-T and 10Base-FL or 100Base-TX cable and 100Base-FX fiber cable for data transmission. It provides stand-alone RJ-45 electrical interface port and supply power to others, and can automatically cross connection with switch and hub network. And feature with link loss diagnosis, electrical port link diagnosis and optical port link diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator. Also it can be realize the interconnection between motherboard servers, Repeaters, hubs, switches terminal.

Key features

• 10/100M Single Port single fiber Media Converter
• 1x RJ45 port and 1x fiber SC port
• IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE802.3z/AB, IEEE802.1d standard, IEEE 802.1af DTE Power via MDI
• Built-in Surge Protection
• Card-type or Stand-alone type for your choice
• Wavelength : 1310/1490 nm
• Transmission Distance : 20, 40, 60 or 110 km (Optional)
• Bandwidth : 1.6Gbps
• Cache size : 512KB
• Wide working temperature : -20°~ 75°C
• MTBF: 190,000 hours



Download : Datasheet
