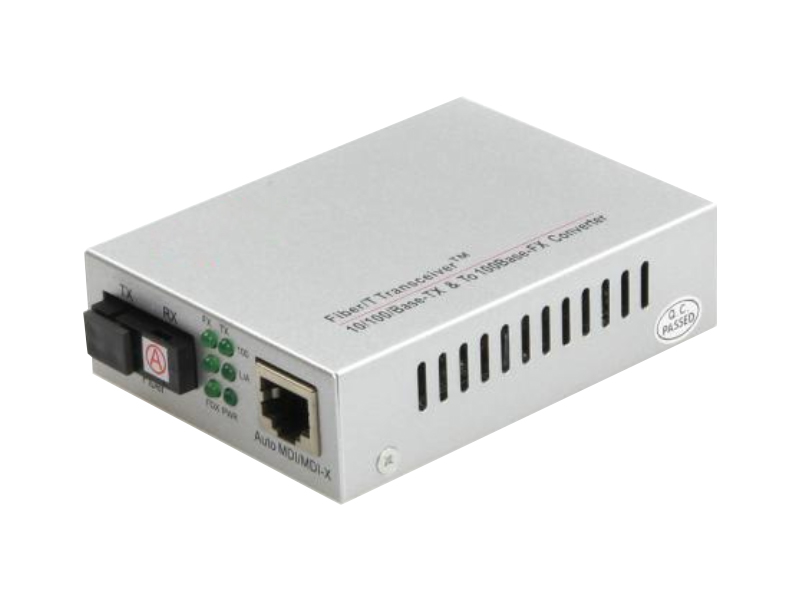

SG-1110S-SCX-K
Category: Media Converter
Gigabit Single-port Media Converter

21 December 2022

View 1148 View

SG-1110-SCX-K series is a gigabit fiber media converter independently developed by Shogun. It has 1*10/100/1000Base-T port and *1000M uplink SC /LC fiber port, User can select different optical modules, such as multimode dual fiber, single-mode dual fiber, and single-mode singlefiber. The media converter adopts the enterprise-class Taiwan Realtek company's carrier-grade chip solution, which has stable performance, good quality and high cost performance.It is suitable for optical fiber access application scenarios such as security monitoring, wireless coverage, intelligent transportation, and safe cities to form a cost- effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.

Key features

• Gigabit Single Port single fiber Media Converter
• 1x RJ45 port and 1x fiber SC port
• Compatible with IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X network protocol, gigabit R45 port rate auto-negotiation
• Built-in Surge Protection
• Card-type or Stand-alone type for your choice
• Wavelength : 1310/1550 nm
• Transmission Distance : 10, 20, 40, 80 or 110 km (Optional)
• Bandwidth : 2.0Gbps
• Cache size : 1MB
• Wide working temperature : -20°~ 55°C
• MTBF: 190,000 hours



Download : Datasheet
