CAT6 UTP Dropwire
Category: UTP Cable
CAT6 UTP Dropwire Cable, Outdoor Double Jacket

26 January 2023

View 752 View

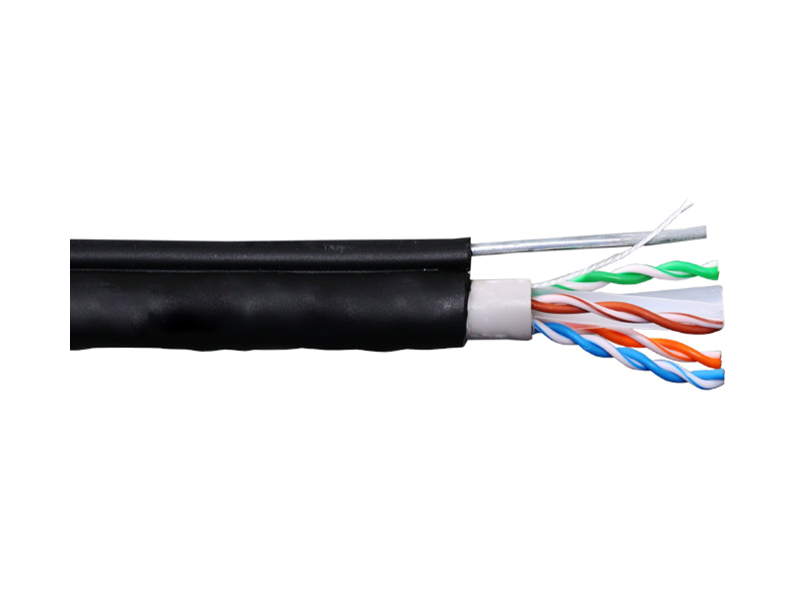

Category 6 4-Pair Outdoor UTP with Messenger Wire and Double Jacket 23AWG solid bare copper, Cable provides significant headroom above all TIA/EIA and ISO/IEC category 6/class E transmission performance specifications. Our high performance category 6 connectivity with 305m (1,000ft) easy pull out reels. These category 6 systems exceed ANSI/TIA/EIA-568-B.2-1 Category 6 performance requirements, providing usable banwidth well beyond 600 Mhz. Category 6 cable and use for backbone ethernet lan gigabit network. It is designed for use in horizontal cabling situations
and supplied in 305m (1,000ft) easy pull out reels. These category 6 systems exceed ANSI/TIA/EIA-568-B.2-1 Category 6 performance requirements, providing usable banwidth well beyond 600 Mhz.

Standards

TIA/EIA- 568A/B/C.2 Category 6, ISO/IEC-11801 2002 (Edition 2) Class E, EN50173: 2002 (Ed.2), EN50288-3-1, ICEA S-102-700,EN 50173-1, ASTM D4566-98, IEC61156-5(2002), EN50288-6-1, NEC800, IEC 60332-1, IEEE 802.3, NEMA WC 66, UL444 and cUL (CMR).



Download : Datasheet
