SG-LR2110-8ET-120
Category: Switch
Unmanaged POE Switch

01 February 2023

View 461 View

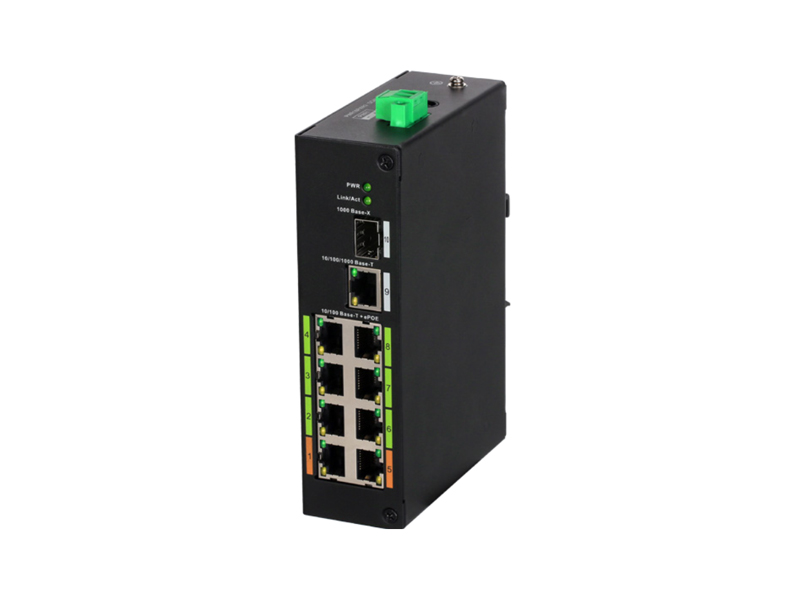

SG-LR2110-8ET-120 is a 8-Port ePoE switch, which is able to realize PoE transmission over 800 meters Ethernet cable at the speed of 10Mbps, or 300 meters at the speed of 100Mbps. Besides, it supports PoE and PoC power supply technology, which has greatly simplified construction and wiring. The ePoE technology offer a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.

Key features

• Supports long distance PoE transmission up to 800m with ePoE technology
• Layer-two ePoE switch
• MAC auto study and aging, MAC address list capacity is 8K
• Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
• Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
• Industrial wide temperature design



Download : Datasheet
