ADSS-FRP (All-Dielectric Self-Support)
Category: Fiber Optic Cable
ADSS Fiber Optic, FRP, Single Jacket

11 January 2024

View 177 View

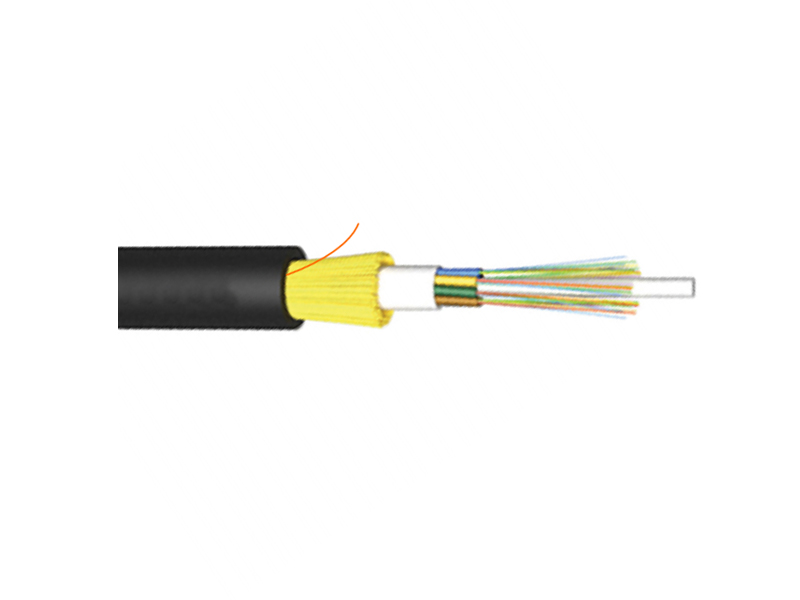

This fiber optic cable have color code for fiber and loose tube Identification, Non-Metallic armored, single Jacket, fiber optic cable. Singlemode color coded fibers are housed in multiple color coded plastic buffer tubes which are stranded around a dielectric central strength member. Dry water blocking tapes or yarns, wrapped around the core, provide protection against water ingress. These user friendly elements replace the sticky cable filling gel used in traditional loose tube cable designs. Non-metallic armored provide for anti-rodent. The cable sheath is high density polyethylene jacket. The cable sheath is high density polyethylene jacket.

Standard

• ANSI/TIA-568-C.3
• ISO/IEC 11801:2011 (Ed.2.2)
• ANSI/TIA/EIA-568-B.3
• ISO/IEC 11801:2002
• ANSI/ICEA 640
• IEC 60793, IEC 60794-1-2
• Telcordia (Bellcore) GR-20-CORE
• EN 50173-1
• EN 187000
• TIA/EIA-598-C (Rev.TIA/EIA-598-A)
• ITU-T G.652D (for single-mode), ITU-T G.651 (for multi-mode)
• EIA-359-A, IEC 596
• RoHS Compliant



Download : Datasheet
